• High Reliability
With DC FUSE
With DC Surge Protection Device
With DC circuit breaker or DC load isolation switch
• Strong Adaptability
IP65 design, waterproof, anti dust and anti ultraviolet.
Strict test for high and low temperature, used widely.
The simple installation,the simplified system wiring, the convenient wiring
The box body is made of cold rolled steel and other metal materials
• Flexible configuration
Used for single crystal silicon solar modules, polycrystalline silicon solar modules, thin film solar modules. Current rating of the photovoltaic fuse, circuit breaker, load isolation switch is modified

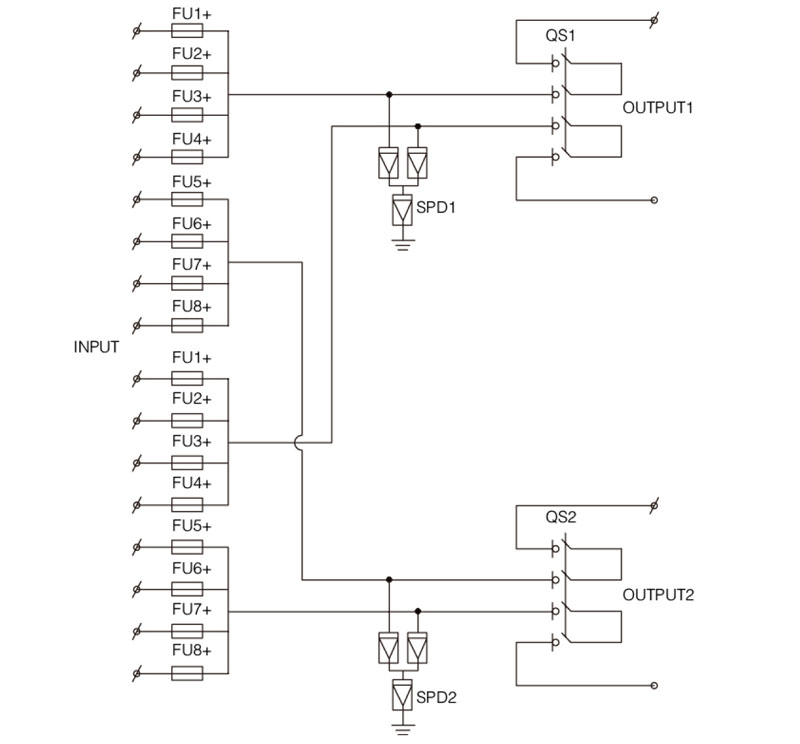

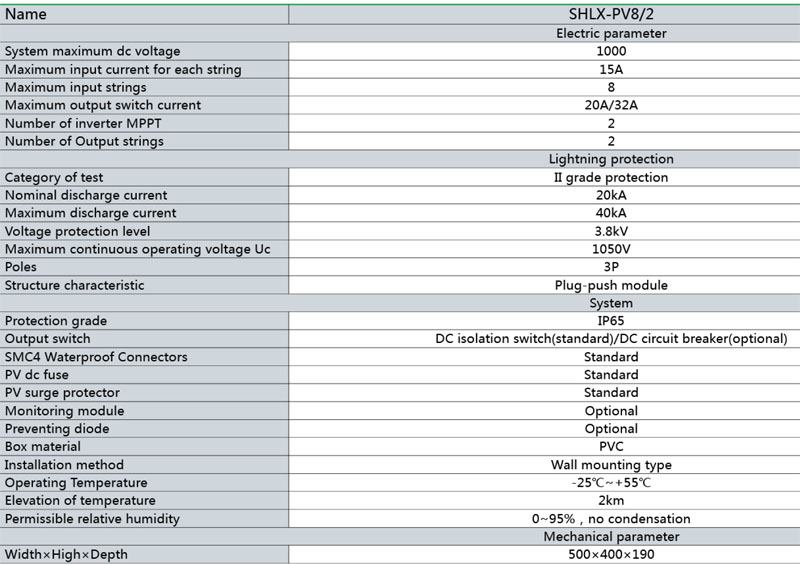

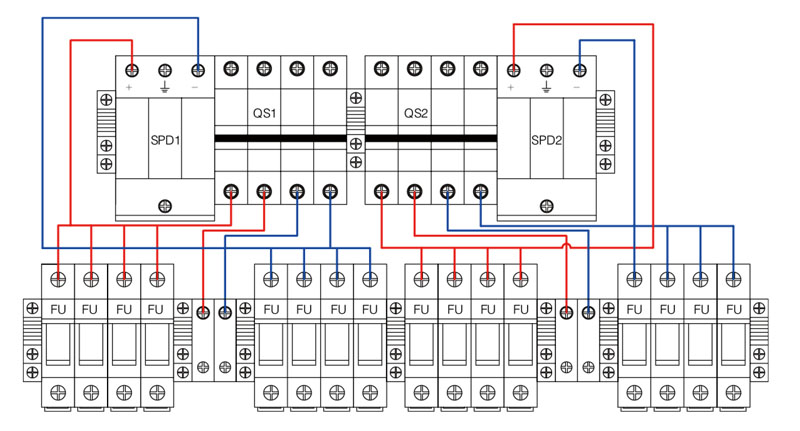

SHLX-PV8/2 DC combiner box is suitable for inverter (MAX input voltage DC1000V, 8 PV input channel, 2 output channel, double MPPT inverter). Box body is made of PVC engineering materials, with test for fire retardant, temperature rise, anti impact, anti ultraviolet,and other testing. IP65 protection grade.
Design and configuration，strictly accordance with the "Technical specification for photovoltaic junction equipment" CGC/GF 037:2014. Provide users with a safe, brief, beautiful and applicable photovoltaic system products.
