Load Disconnect Switch


Load Disconnect Switch

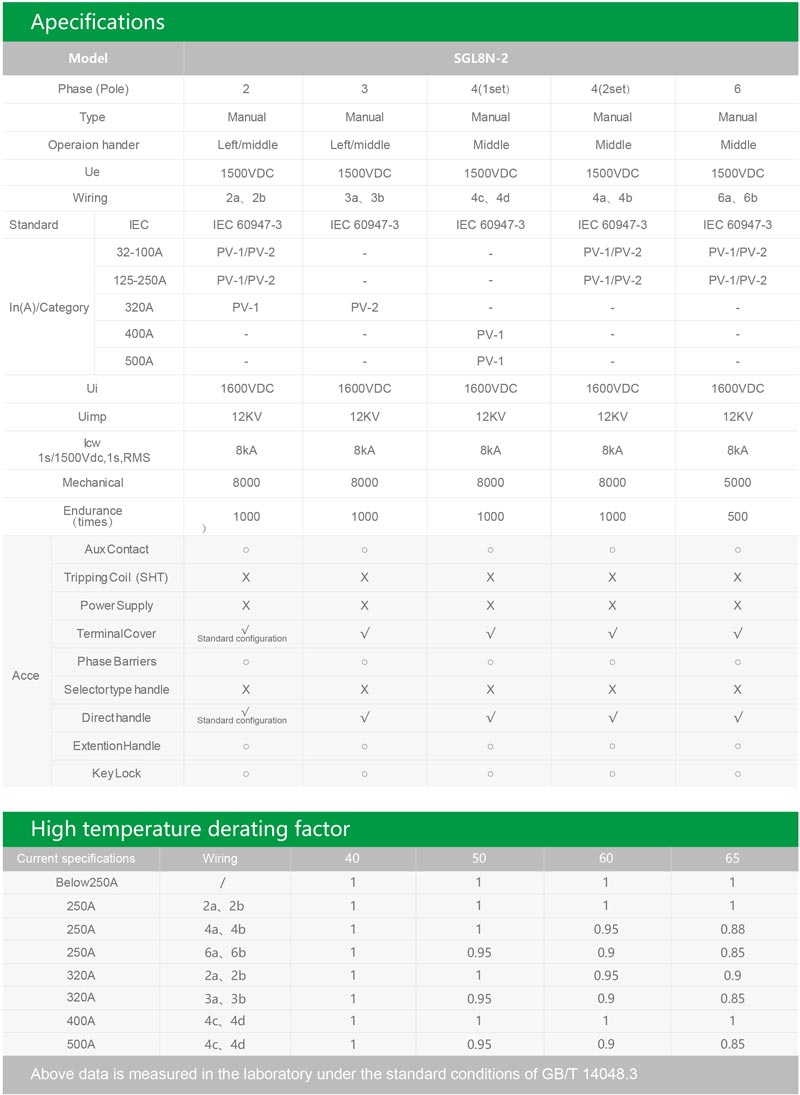

  • Model Number:SGL8N-2
  • Certification:TVU、CE、IEC
  • Rated voltage:DC1500V
  • Uimp:8KA
  • Poles: 1P/2P/3P/4P/6P



Main function

Mainly for isolation in the circuit




Suitable for circuits below 1500VDC

cabinet/combiner box/photovoltaic system





Double magnetic and arc extinguishing chamber

let Power be disconnected in a compact space

Save installation space and cost

From 4P to 2P

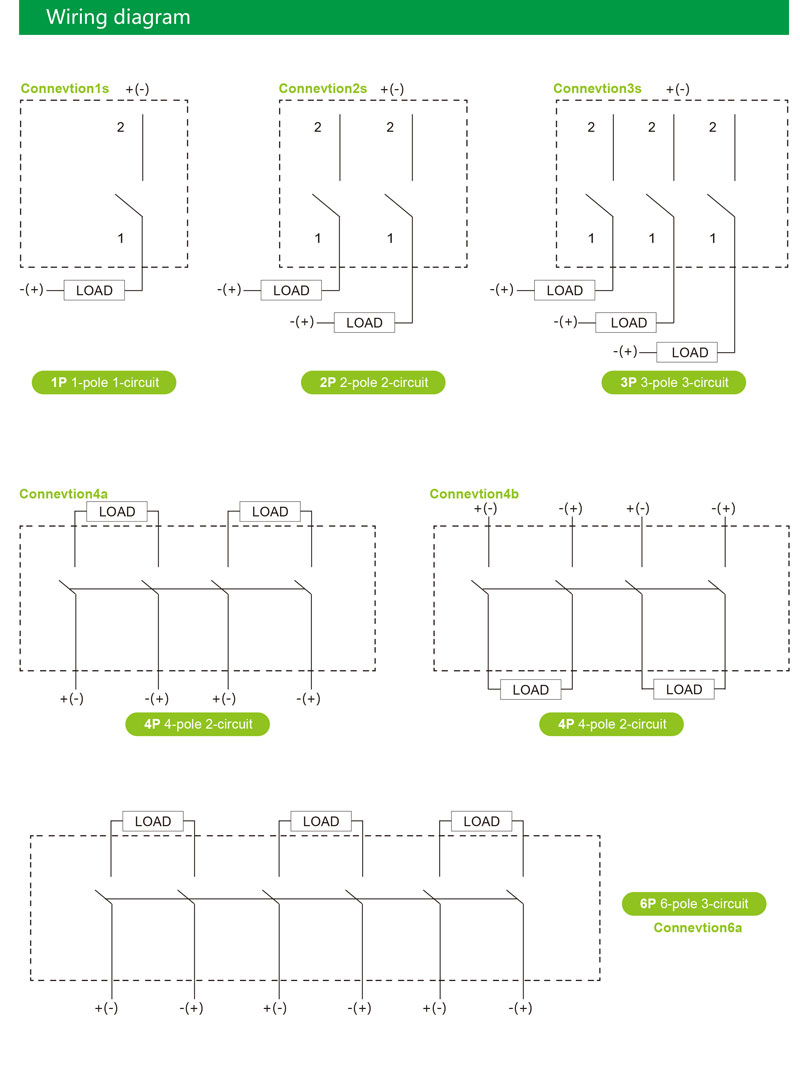

Wiring nuts are provided for the full series

Groove structure

Increase creepage distance

Reduce the risk of current leakage

Oversized terminal block

standard with 4*20mm copper silver-plated material
